For applications where Seeflex 040E is not enough.
Our Tool Release (TR) option provides the perfect solution for areas where you want to significantly reduce the risk of staff putting their hands near dangerous moving parts.
Product Description
The BFM® Tool Release (TR) option has been developed for applications where the connector is mounted very close to equipment that is rotating or spinning very fast, providing additional safety for production and maintenance staff.
The snap-band of the BFM® TR option is manufactured to have a firmer fit than a standard connector, making it virtually impossible to remove the connector by hand. It also makes it ideal for negative pressure (vacuum) applications.

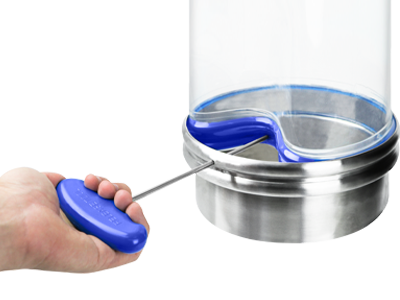

A special BFM® Tool Release Tool is required to release the snap band. This tool is inserted through a special TR hole that is made in the top ridge of the spigot, and should be kept secure to ensure no unauthorised access.

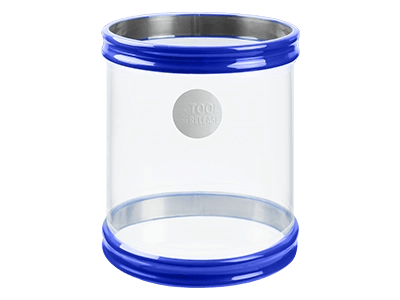

The BFM® TR (tool release) Seeflex 040E/020E/060ES fittings have a white embossed identifier stamp to make them easy to differentiate from our standard fittings.
Application
- Tool Release can be added to connectors to act as an additional safety measure as it is virtually impossible to remove by hand and requires a specifically shaped tool.
- The tool can be kept securely by an authorized person and only released for approved use, adding a level of additional safety controls for dangerous positions.
Key Features
Reduces risk of staff putting their hands near dangerous moving parts
Firmer snap-band making it ideal for negative pressure (vacuum) application
Note: Before installing a Tool Release Connector, a Tool Release hole needs to be made in the top ridge of the BFM® Spigot to enable the TR Tool to be inserted for removal of the connector when required.
Product Options
We have two available Tool Release options, each with different shaped insertion holes and tools.
The Standard Tool Release has a round shaped insertion, whereas the Smiley Face Tool has an insertion shaped like a smiley face when looking at it from the end.
The Smiley Face option offers an added level of safety as nothing can be adapted (screwdrivers etc.) to be inserted through the uniquely shaped hole (see below).
Physical properties
Can be applied to
All Flexible Connectors, Blanking Caps & Bins and FM1 Breather.
Dimensions
Available Diameters
Max. connector diameter for Tool Release is 650mm
Rather than a standard 'round' hole drilled in the edge of the spigot, our 'Smiley Face' Tool Release Option has a unique 'smiley' shaped hole that stops anything but our 'Smiley Face' Tool Release Tool from being used to remove the connector.
The special Smiley Face Tool can then be held securely and only accessed by authorized personnel to ensure safe operation.
For Added Security
TR Lock-Out Safety System
If you are concerned about staff improvising other tools to access a TR hole in a spigot, our new TR Lock-Out Safety System is the ideal solution.
A ‘TR Lock-Out’ Tube is welded to the outside of the spigot over the tool release hole in the top ridge of the BFM® fitting Spigot.
A padlock can then be inserted, blocking access to the TR hole. The padlock key can then be held by authorized staff only.
