Product Description

Title Line

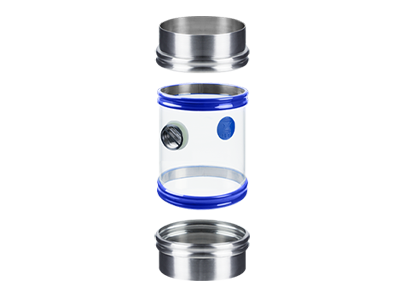

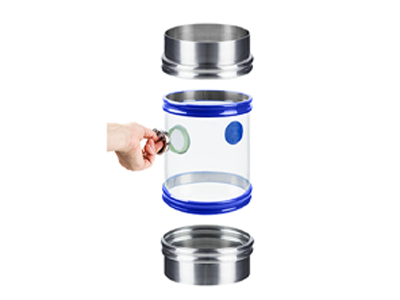

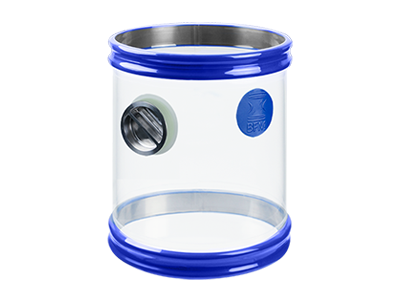

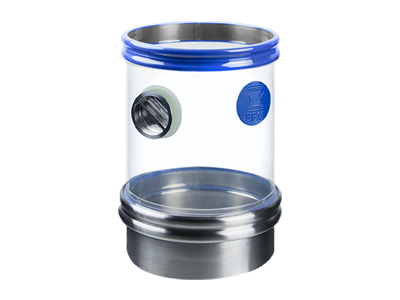

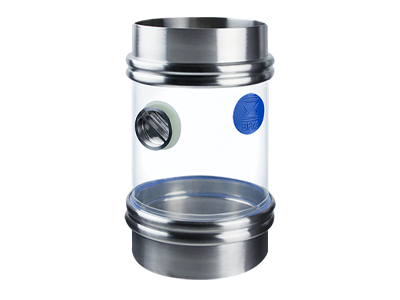

The Quick Access Port Connector features a polyurethane thread port hole and a stainless steel screw-in plug that is inserted in the side wall of a standard BFM® Seeflex 040E or Seeflex 060ES connector.

The Quick Access Port is designed to give easy, clean access to a product flow for actions such as metal detector drop-ball testing, product sampling or adding small volumes of ingredients during manufacturing.

Application

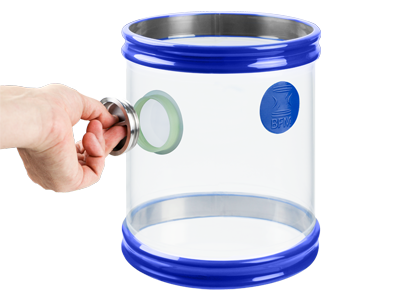

  • Screw port provides fast and easy access to product flow without having to remove the connector.

  • Product flow is not interrupted for regular metal detector testing or product sampling.

  • Because the connector doesn’t need to be removed, there is no product spillage or wastage.

  • Does not affect the physical performance of the connector.

Key Features
tick for web-light blue-60x60px


Quick and easy access to product flow with no connector removal required

tick for web-light blue-60x60px


Ideal for applications that require regular metal detector testing or product sampling

Specifications

Title Line
Physical properties
Can be applied to
Seeflex 040E & Seeflex 060ES
Colour
Natural (Yellow)
Weight
168g
Breathable
No
Dust tight?
Yes
Maximum Number of Rings (on a single connector)
10
Operating Conditions
Max. Operating Temp
110ºC / 230ºF
Operating Temp Range
- 25 to 110˚C / - 13 to 230˚F
Vibration
Yes
Oscillation
No
Compression
No
Certification and Compliance
FDA and USDA
FDA 21 CFR 177.1680 & 177.2600
3A Certified
Manufactured from 3A 20-27 certified Seeflex Material and the BFM® cuff and spigot system is a 3A certified 63-04 sanitary fitting.
EU Approved
Yes
Atex Certified
Yes, provided the stainless plug is earthed. Restrictions apply.
Dimensions
Available Diameters
Ø150mm and up 50mm increments
Applicable Connector Lengths
  • 150mm (6") and up in 50mm (2") increments.
Options
Available with SS Rings? (min. length for all is 150mm)
Yes
Available with Plastic Rings? (min. length for all is 150mm)
Yes
Available as Tool Release?
Yes
Available as Tapered?
Yes
Available as a one ended Connnector?
Yes

Hear from a BFM® fitting expert

Title Line

Listen to our Technical Lead, Matthew Bailey, speak in-depth about the features and benefits of our Quick Access Port option.



Getting Started with BFM® fittings

Title Line

We have Authorized Distributors who will help work through what you want to achieve and how BFM® fitting can improve your plant.



Product Options

Title Line
  • Rings
  • Tapered
  • Tool Release
Rings



The Quick Access Port in Steel Rings-white background-400x300pxSeeflex 040E or Seeflex 060ES are available with stainless steel or plastic support rings to help keep the walls of the connector open.

Ideal for vacuum applications or longer lengths.

Tapered



The Quick Access Port in Tapered connector-white background-400x300pxSeeflex 040E or Seeflex 060ES are available as a tapered version where different entry and exit diameters are required.

Also often used as a simple hopper solution.



Tool Release



Tool Release- 300 x 200pxFor added security, this option has a significantly firmer snap-band that makes it virtually impossible to remove by hand and requires a specially shaped tool.



Tips and Guides

Title Line

For some useful technical tips and information get you started with selecting the BFM® fitting system.

Installation Process

Title Line

Helpful information for the entire installation process, from measuring up for the initial welding of your spigots to snap-fitting your connectors.

Contact Us

Title Line
If you would like to discuss your unique application, please contact us and we'll help find a solution for you.
