Corner Connector 040E

A unique corner connector made of clear ether-based thermoplastic polyurethane alloy connector with a 110° bend to aid the transportation of CIP fluid flowing through your process.

Product Description

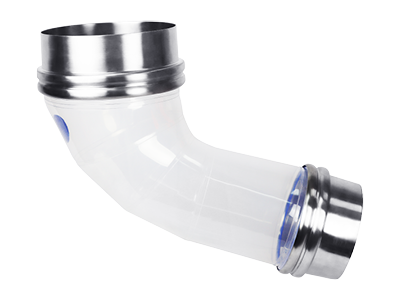

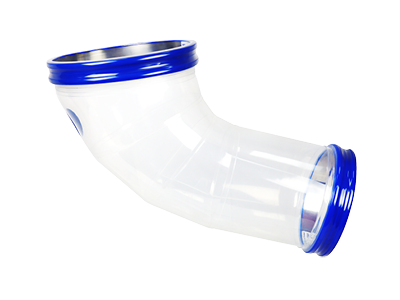

Our Corner Connector 040E is made from a clear ether-based thermoplastic polyurethane alloy with a tapered infeed end, 110º angled bend and straight drain output end.

It is designed to redirect the clean-in-place (CIP) wash fluid flowing through your process ensuring that your equipment stays dry and your product is free from chemicals used to clean your process machinery.

Application

CIP (clean-in-place) wash processes to replace traditional steel tun-dish and swiveling pipework.
Designed for applications where product/material needs to be transported around a bend.
Ideal for under compact machinery (i.e. sifter/sieve) where product needs to be redirected into other equipment where there is limited space.

Downloadables:

Conditions and Compliance:

icons-operating conditions-Seeflex Corner Connector 040E_400x300px

Corner Connector
040E Images

Specifications

Physical properties

Material/Fibre

Seeflex - Ether-based thermoplastic polyurethane

Colour

Transparent

Construction/ Finish

Gloss/Gloss

Wall Thickness (+/- 10%)

0.9 mm / 1/32 inch

Breathable

Hardness (Shore A)

Tensile Strength (MPa)

Elongation (100%)

Elongation (300%)

15.6

Ultimate Elongation

593

Tear Strength – Die C (N)

100% Modulus (MPa)

Dust tight?

Yes

Maximum Number of Rings (on a single connector)

Operating Conditions

Max. Operating Temp

110°C / 230°F

Operating Temp Range

- 25 to 110°C / - 13 to 230°F

Surge Temp

120ºC / 248ºF

Low Temp / Flexibility

Good

Surface Resistivity (0hms)*

10¹⁰ (Tested to ASTMD-257)

Air Permeability

Max. Operating Pressure

0.34 bar / 5.0 PSI (for temp. to 90˚C / 195˚F measured on a static Ø200mm x 200mm long connector). We recommend using the shortest possible connector for applications where increased pressure and/or high temperature is expected.

Vibration

Yes

Oscillation

Compression

Certification and Compliance

FDA and USDA

FDA 21 CFR 177.1680 & 177.2600 and USDA

3A Certified

Manufactured from 3A 20-27 certified Seeflex Material and the BFM® cuff and spigot system is a 3A certified 63-04 sanitary fitting.

EU Approved

(EC) 1935/2004, 2023–2006 & 10/2011

Atex Certified

IBExU tested. Approved for all dust explosion hazardous areas. Some restrictions apply.

Dimensions

Available Diameters

Diameter 1 (wide (infeed) end) Ø125mm (5") to Ø650mm (26") in 50mm (2") increments.
Diameter 2 - narrow (outlet) end: Ø100mm (4") to Ø600mm (24") in 50mm (2") increments.

(max. diameter with SS rings is 500mm, Tool Release is 650mm at the wide end and 600mm at the narrow end, plastic rings is 1,000mm)

Applicable Connector Lengths

Height 1 - wide (infeed) end*: 200mm (8") to 900mm (35”) in 50mm (2") increments.
Length 1 - narrow (outlet) end: 100mm (4") to 650mm (26") in 50mm (2") increments.

(min. length for all with rings is 150mm)

Options

Available with SS Rings? (min. length for all is 150mm)

Available with Plastic Rings? (min. length for all is 150mm)

Available as Tool Release?

Yes to ≤ Ø650mm - wide end, ≤ Ø600mm narrow end

Available as Tapered?

Yes

Available as a one ended Connnector?

Yes

Quick Access Port Option?

Corner Connector Calculator

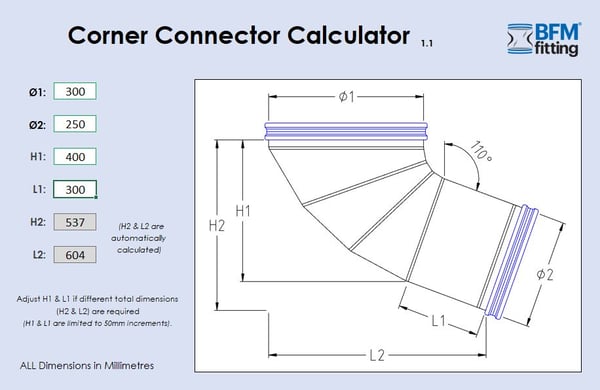

To check the minimum allowable inlet height, and to calculate the total dimensions (from cuff to cuff) of available corner connector sizes, you can download the Corner Connector Calculator.

Corner Connector Calculator

Getting Started with BFM® fittings

We have Authorized Distributors who will help work through what you want to achieve and how BFM® fitting can improve your plant.

Find Your Local Distributor

Product Options

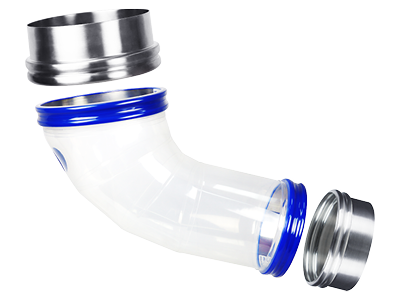

Rings
Tool Release

Rings

Tool Release

For added security, this option has a significantly firmer snap-band that makes it virtually impossible to remove by hand and requires a specially shaped tool.
