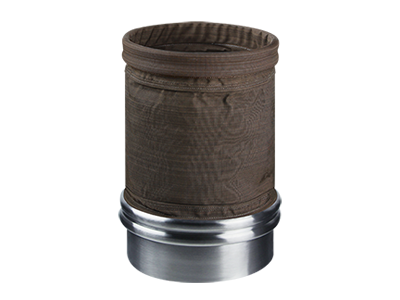

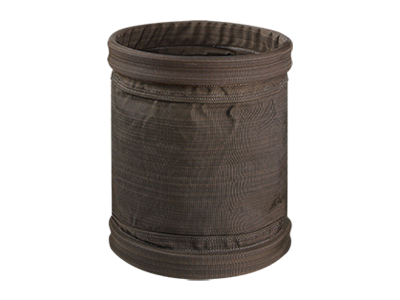

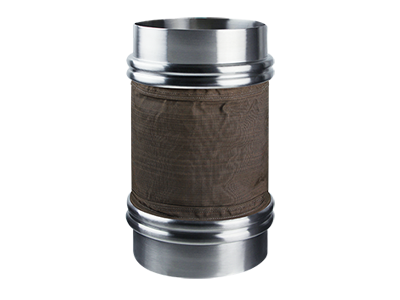

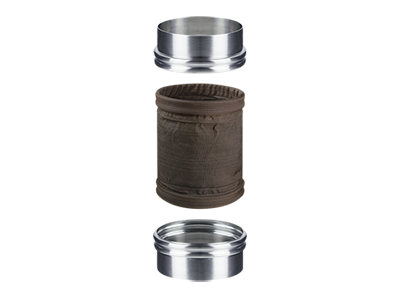

Teflex Woven is made from pure woven PTFE and can be used in high temperature applications and with either caustic or acid products.

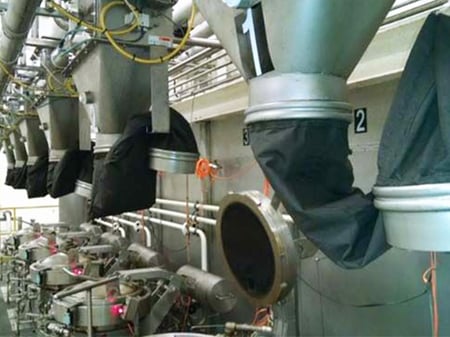

Application
  • Can be used on products across the full pH scale  i.e. caustic and acid products will not effect PTFE.
  • Capable of running at high temperatures – continuously operating at 260°C / 500°F with short term surges at 280°C / 536°F.


Key Features
tick for web-light blue-60x60px


Can be used on products across the full pH scale

tick for web-light blue-60x60px


Capable of running at  high temperatures

Specifications

Title Line
Physical properties
Material/Fibre
PTFE
Colour
Natural (dark brown)
Construction/ Finish
Basket weave
Wall Thickness (+/- 10%)
0.5mm / 1/64 inch
Weight
678 g/m2 / 20 oz/yd2
Breathable
Yes
Minimum Tensile Strength (kgf/25mm) (measured as a force over a 25mm wide Ravel Strip)
Warp 90 Filling 100 (Test Standard: ASTM D5035). (measured as a force over a 25mm wide Ravel Strip)
Ultimate Elongation
55 (Test Standard: ASTM C5035
Dust tight?
No
Maximum Number of Rings (on a single connector)
10
Operating Conditions
Max. Operating Temp
260°C / 500°F
Operating Temp Range
- 40 to 260°C / -40 to 500°F
Surge Temp
280°C / 536°F
Low Temp / Flexibility
Good
Air Permeability
0.3 (cm3/cm2/sec at 125Pa) / 0.50 (ft3/ft2/sec at 0.5 inch wg)
Vibration
Yes
Oscillation
Yes
Compression
Yes
Certification and Compliance
FDA and USDA
PTFE is compliant with FDA 21 CFR 177.1550, 178.3297
3A Certified
The BFM® cuff and spigot system is a 3A certified 63-04 sanitary fitting.
Atex Certified

IBExU tested. Approved for all dust explosion hazardous areas. Some restrictions apply.

Dimensions
Available Diameters
  • Ø100mm,
  • Ø125mm
  • Ø150mm - 1,650mm (in 50mm increments).

(max. diameter with SS rings is 500mm, Tool Release is 650mm plastic rings is 1,000mm)

Applicable Connector Lengths
80mm (3"), 100mm (4") then in 50mm (2") increments up to 1,500mm (4ft 11"). (min. length for all with rings is 150mm)
Options
Available with SS Rings? (min. length for all is 150mm)
Yes - to Ø500mm = CL ≤ 1,500mm
Available with Plastic Rings? (min. length for all is 150mm)

Yes - to Ø500mm = CL ≤ 1,500mm, Ø550mm - 1,000mm = CL ≤ 500mm
(Max Operating Temp: 110°C / 230°F)

Available as Tool Release?
Yes to Ø650mm
Available as Tapered?
Yes
Available as a one ended Connnector?
Yes
Quick Access Port Option?
No
