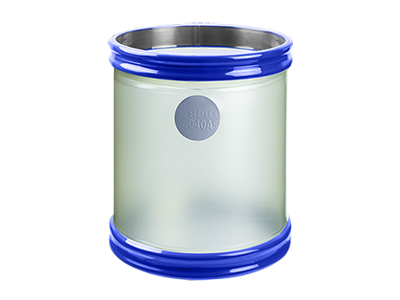

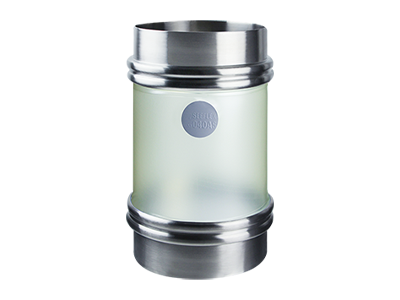

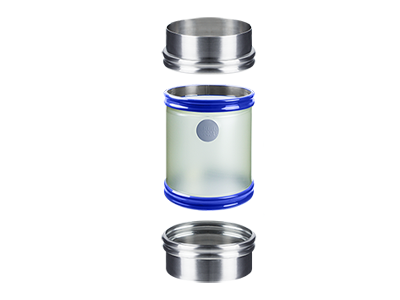

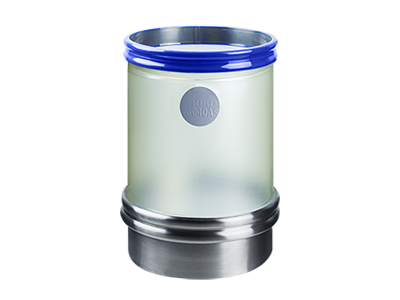

Seeflex 040AS is a semi-transparent, ether-based thermoplastic polyurethane alloy with Anti-static infusion to ensure static does not build up through product flow (friction).

An anti-static strap is required for any occurence of electricity through the system that could be caused by any unexpected current/charge and is used to ensure a spark does not pass between pieces of equipment.

Application
  • Designed for applications where static is a problem.

  • Excellent abrasion, chemical and puncture resistance.
Key Features
tick for web-light blue-60x60px


Used on all types of stationary, vibratory & oscillating equipment

tick for web-light blue-60x60px


Superior wear resistance - won't tear or rip

tick for web-light blue-60x60px

Ideal for static applications

tick for web-light blue-60x60px

3A, USDA, EC and ATEX compliant

Physical properties
Material/Fibre
Seeflex - Ether-based thermoplastic polyurethane
Colour
Transparent
Construction/ Finish
Matte/Matte
Wall Thickness (+/- 10%)
0.9 mm / 1/32 inch
Breathable
No
Hardness (Shore A)
90
Tensile Strength (MPa)
37
Elongation (100%)
7.5
Elongation (300%)
11.7
Ultimate Elongation
640
Tear Strength – Die C (N)
51
100% Modulus (MPa)
7.5
Dust tight?
Yes
Maximum Number of Rings (on a single connector)
10
Operating Conditions
Max. Operating Temp
95ºC / 203ºF
Operating Temp Range
- 25 to 95°C / - 13 to 203°F
Surge Temp
100°C / 212°F
Low Temp / Flexibility
Good
Surface Resistivity (0hms)*
108 (Tested to ASTMD-257)
Air Permeability
0
Max. Operating Pressure
0.24 bar / 3.5 PSI (for temp. to 90˚C / 195˚F measured on a static Ø200mm x 200mm long connector). We recommend using the shortest possible connector for applications where increased pressure and/or high temperature is expected.
Vibration
Yes
Oscillation
Yes
Compression

Yes

Certification and Compliance
FDA and USDA
FDA 21 CFR 177.1680 & 177.2600 and USDA
3A Certified
Manufactured from 3A 20-27 certified Seeflex Material and the BFM® cuff and spigot system is a 3A certified 63-04 sanitary fitting.
EU Approved
(EC) 1935/2004, 2023–2006 & 10/2011
Atex Certified

IBExU tested. Approved for all dust explosion hazardous areas. Some restrictions apply.

Dimensions
Available Diameters
  • Ø100mm (4"),
  • Ø125mm (5"),
  • Ø150mm (6") through to Ø1,650mm (65") in 50mm (2") increments.

(max. diameter with SS rings is 500mm, Tool Release is 650mm plastic rings is 1,000mm)

Applicable Connector Lengths
  • 80mm (3")
  • 100mm (4") then
  • 50mm (2") increments up to 6,000mm (19ft 8")

(min. length for all with rings is 150mm)

Options
Available with SS Rings? (min. length for all is 150mm)
Yes - to Ø500mm = CL ≤ 2,000mm
Available with Plastic Rings? (min. length for all is 150mm)
Yes - to Ø500mm = CL ≤ 4,500mm, Ø550mm - 1,000mm = CL ≤ 500mm
Available as Tool Release?
Yes to Ø650mm
Available as Tapered?
Yes
Available as a one ended Connnector?
Yes
Quick Access Port Option?
No

Getting Started with BFM® fittings

Title Line

We have Authorized Distributors who will help work through what you want to achieve and how BFM® fitting can improve your plant.

Hear from a BFM® fitting expert

Title Line

Listen to our Technical Lead, Matthew Bailey, speak in-depth about the features and benefits of our Seeflex 040AS.





Product Options

Title Line
  • Rings
  • Tapered
  • Tool Release
Rings



Steel Rings-white background-400x300pxSeeflex 040AS is available with stainless steel or plastic support rings to help keep the walls of the connector open.

Ideal for vacuum applications or longer lengths.

Tapered



Tapered connector-white background-400x300pxSeeflex 040AS is available as a tapered version where different entry and exit diameters are required.

Also often used as a simple hopper solution.



Tool Release



Tool Release- 300 x 200pxFor added security, this option has a significantly firmer snap-band that makes it virtually impossible to remove by hand and requires a specially shaped tool.



Tips and Guides

Title Line

For some useful technical tips and information get you started with selecting the BFM® fitting system.

Installation Process

Title Line

Helpful information for the entire installation process, from measuring up for the initial welding of your spigots to snap-fitting your connectors.

Contact Us

Title Line
If you would like to discuss your unique application, please contact us and we'll help find a solution for you.

Frequently Asked Questions

Title Line
Is it possible to have very long connectors with an earthing strap?

It is not recommended. It is preferable to reduce the IG to < 2m and use the Seeflex 040AS (antistatic).
