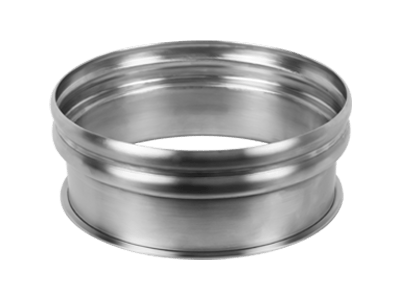

This spigot option has a 6mm 'lip' that allows the fast and easy integration of a BFM® fitting system with major modular piping systems using quick clamp/pull-ring type fasteners.
Product Description
Available in Stainless Steel T304L , the Lipped Spigot allows the BFM® fitting system to be installed using clamping systems without the need for welding.
The lip is compatible with most major brands, including JACOB.
- 6mm rolled lip formed at the tail/base of a standard spigot
- 83mm (3 17/64") in total length - with a tolerance of ±3mm – made up of a head measuring 37mm (1 29/64") and a 'tail' that is 46mm (1 13/16”) long
Downloadables:
Key Features:
-
6mm lip formed at the tail (base) of the spigot
-
Compatible with JACOB and most other modular clamped piping/tubing systems
- Allows fast, easy installation of a BFM® fitting system into any modular production line
- Available in T304L Stainless Steel
View Specifications below for full details and restrictions.
The illustration shows the Lipped Spigot securely connecting to the flexible connector and spigot, highlighting the easy, tool-free installation. The unique lip design ensures an airtight seal, enhancing performance and hygiene.
How Does The Lipped Spigot Work?
Our Technical Lead, Matthew Bailey, explains how the BFM® Lipped Spigot works to allow a BFM® system to be integrated into a modular pipe system.
Physical properties
Material/Fibre
Stainless Steel T304L
Construction/ Finish
≤ 0.8Ra micro-metres (32Ra micro-inches)
Wall Thickness (+/- 10%)
2.0mm / 5/64"
Dimensions
Available Diameters
- Ø100mm, Ø125mm
- Ø150mm - 400mm (in 50mm increments)
Product Option
Tool Release (TR)
To enable the installation of a TR (Tool Release) connector, a 6mm / 15/64” hole must be drilled in the top ridge of the head
Tips and Guides
For some useful technical tips and information get you started with selecting the BFM® fitting system.
Installation Process
Helpful information for the entire installation process, from measuring up for the initial welding of your spigots to snap-fitting your connectors.
BFM® spigots are uniquely shaped to enable the connectors to snap-fit inside. They are available in Stainless Steel T304L and T316L , as well as C22...
Contact Us
If you would like to discuss your unique application, please contact us and we'll help find a solution for you.
Frequently Asked Questions
Is it possible to get BFM® spigots manufactured in different thicknesses?
No - all of our spigots are manufactured with the same thickness of steel - 2mm. The 100mm BFM® spigots are sized to fit standard 'dairy' tube, which is measured externally, all other BFM® spigot diameters are measured internally to accommodate nominal bore standard tube.
