Few maintenance headaches are more familiar — or more frustrating — than product leakage from flexible connectors. In plants operating under positive pressure, even the smallest weak point can become a major source of dust, product loss, and downtime.
It’s an issue that has persisted for decades with traditional hose-clamped sleeves. But with modern safety standards and productivity expectations higher than ever, it’s time to ask: is there a better way to stop leaks for good?
The Hidden Cost of Leaky Connectors
Positive pressure is common in many manufacturing processes — from pneumatic conveying to sifters, mills, and cyclones. It helps move materials efficiently through the plant, but it also places flexible connections under continuous stress.

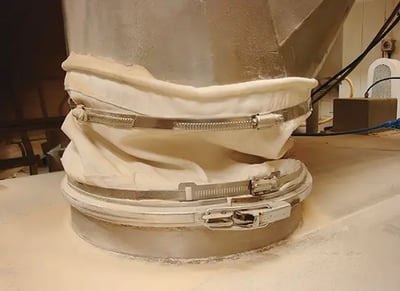

Traditional hose-clamped connectors, which rely on an external band to hold a flexible sleeve onto a pipe, have an inherent design flaw. The clamp compresses the sleeve from the outside, but under internal pressure, the product pushes outward, trying to escape through even the smallest gap.
Even when installed perfectly, these systems are vulnerable to several persistent problems:
-

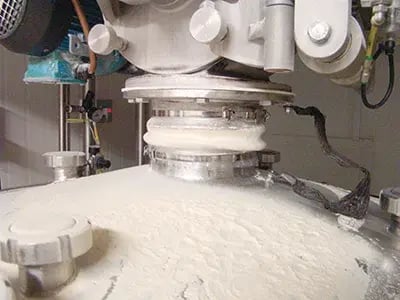

Product Leakage and Dust Emissions: When powder or granulated product escapes through a poor seal, it doesn’t just make a mess — it can create serious hygiene, quality, and safety risks. Fine dust can contaminate nearby processes, accumulate on surrounding surfaces, and, in many cases, be an explosion hazard.
-
Blow-Outs and Equipment Damage: Under sudden pressure spikes, traditional clamps can loosen or fail altogether. The result? A violent blow-out that spreads product throughout the plant, damages equipment, and triggers costly clean-up and downtime.
-
Downtime and Inconsistent Fit: Each time a clamped connector is removed for cleaning or a product changeover, it must be manually remeasured, realigned, and retightened.
If you’re dealing with a connection to equipment that moves significantly, such as a rotary sifter, repositioning the connector to allow for the full movement (from start-up to shut-down) can be especially challenging. This not only consumes valuable maintenance hours but also introduces inconsistency — no two operators fit a clamp quite the same way. The result: variable seal quality and recurring leaks.
Why Positive Pressure Exposes the Weakness in Old Connector Designs
Positive pressure magnifies every flaw in a traditional connector setup. Because the seal depends solely on friction from tightening the clamp, any unevenness, vibration, or movement in the process line can break the seal.
Instead of helping secure the connector, the pressure works against it, pushing product into the smallest gaps between the sleeve and the pipe. This is especially true when fine, aerated powders are being conveyed, as they behave almost like a fluid under pressure and find every possible escape route.
For operations dealing with strict hygiene requirements, such as food, dairy, and pharmaceutical manufacturing, the implications are significant. Leaks not only risk contamination but can also cause entire production batches to be scrapped.
So, is it possible to turn pressure from a liability into an advantage?
A Smarter Seal Under Pressure: The BFM® fitting System
That’s exactly what the BFM® fitting flexible connector system achieves. Rather than relying on external clamps and manual tightening, BFM® re-engineered the flexible connector concept from the ground up.
The system uses a unique snap-fit design, with precision-made spigot adaptors at each end and a connector that locks into place internally. The result is a 100 % sealed connection that actually becomes tighter as internal pressure increases.
How It Works

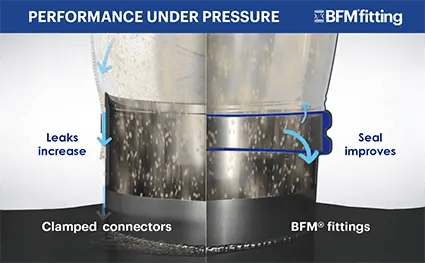

The flexible connector has moulded cuffs that fit snugly inside the spigots, snapping securely into internal grooves. When pressure builds inside the line, it presses the connector’s cuff firmly outward against the spigot walls, effectively reinforcing the seal.
Where clamped sleeves are forced away from the pipe by pressure, the BFM® design uses that same force to strengthen its hold. The result is a dust-tight, leak-proof joint that stays secure even under surge conditions.
The Pay-Off for Production Managers
The engineering is elegant, but the operational advantages are what really count. Plants that have switched from traditional connectors to the BFM® fitting system consistently report improvements in three key areas:
-
Zero Leaks and Cleaner Plants: The BFM® system eliminates the tell-tale powder rings around fittings. Because the seal is completely internal and uniform, there are no crevices for dust or product to escape. This leads to cleaner, safer workspaces and significantly reduced housekeeping requirements.
-
Faster Changeovers and Less Downtime: No clamps. No tools. No measurements. The snap-fit design allows connectors to be replaced or removed for cleaning in seconds—typically under 30 seconds per unit. Maintenance teams spend less time wrestling with fittings and more time keeping production moving.
-
Consistent, Repeatable Fit: Every connector fits perfectly every time. Operators can’t overtighten or misalign them, thereby removing the variability that causes leaks and failures in clamped systems.
High-Performance Materials: BFM®’s Seeflex is a Standout
A connector system is only as good as the material it’s made from, and this is where BFM®’s proprietary Seeflex stands out. This clear, ether-based polyurethane alloy has been engineered specifically for use in high-pressure and high-wear environments.
The most widely used is Seeflex 040E, which can withstand most common process applications. There is also a specialty high-pressure version of the Seeflex product for additional pressure resistance: Seeflex 060ES.
What makes Seeflex 060ES exceptional?
-
Enhanced Pressure Resistance: Rated for continuous positive pressure up to 1.7 bar (24 psi), Seeflex 060ES handles applications that would challenge or rupture most traditional sleeves. -
Reinforced Stability: An internal polyester scrim layer adds strength and dimensional control, preventing ballooning or deformation under load.
-
Hygienic and Compliant: Seeflex 060ES meets FDA, USDA, and 3-A Sanitary Standards, ensuring it can be safely used in regulated industries where contamination risk must be minimised.
- Temperature Tolerance: Suitable for continuous operation from -25 °C to 120 °C, withstanding short-term surges up to 140 °C.
This combination of resilience and pressure capability makes Seeflex 060ES the material of choice for processors looking for a robust, long-lasting connector solution.
Proven Results Under Pressure

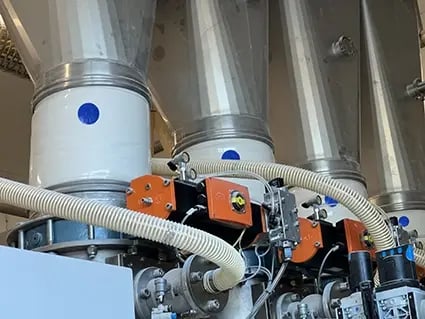

Across industries as varied as food, chemicals, pharmaceuticals, and minerals, the results are consistent. Plants that have switched to the BFM® fitting system report:
-
No more dust clouds around positive-pressure transfer points.
-
Improved hygiene compliance, reducing the risk of contamination.
-
Reduced maintenance hours and faster CIP turnaround times.
-
Fewer unplanned shutdowns caused by blown or leaking sleeves.
The system has been adopted globally by manufacturers seeking to improve both process efficiency and safety performance.
The Bottom Line
If your plant still relies on hose-clamped flexible connectors, it’s likely that some of your product is literally leaking away — even if you can’t see it. Under positive pressure, every weak point is amplified, and traditional sleeve designs simply weren’t built to handle those forces.
The BFM® fitting flexible connector system, using the advanced Seeflex 060ES material, turns that problem on its head. Instead of fighting pressure, it harnesses it — creating a cleaner, safer, more reliable seal that saves time, reduces waste, and keeps your product where it belongs.
For production and engineering managers focused on efficiency and safety, the message is clear: Stop tightening clamps. Start sealing smarter.
Find out more about how the BFM® fitting system operates under pressure.
