Product Description

Title Line

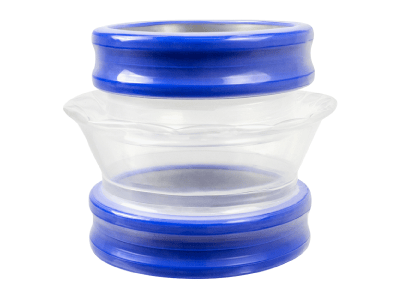

Our Weighing Bellows are made from our clear ether-based thermoplastic polyurethane alloy Seeflex 040E, making them very strong and flexible, so they won't fracture as a result of constant flexing.

The shape of the Weighing Bellows is ideal for preventing vibration transmission between equipment, minimising any transfer that can affect weighing or scales downstream.

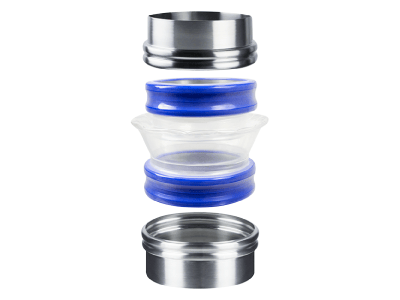

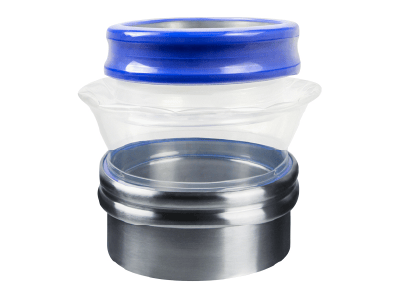

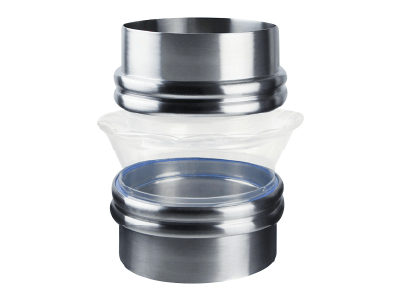

Snap-fit connector and spigot design ensure fast, accurate installation every time the connector is removed and replaced.

Application
  • Designed for applications where precise weighing is required, e.g. loss-in-weight feeders & dosing equipment.

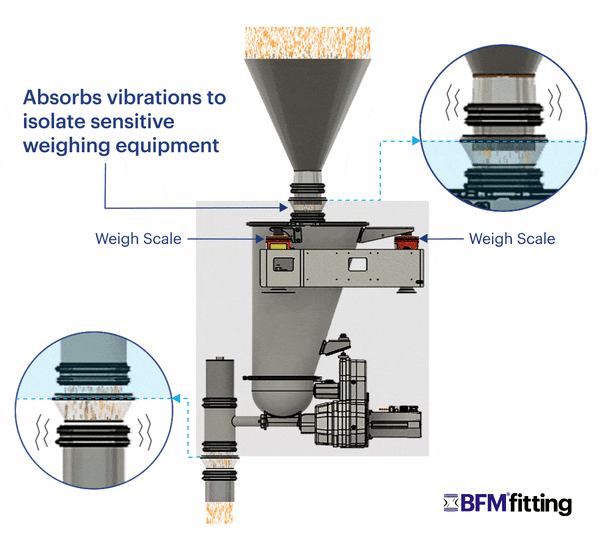

BFM Weighing Bellows - How It Works - Product Page-1



Key Features
tick for web-light blue-60x60px


Prevents force transfer on sensitive weighing equipment

tick for web-light blue-60x60px


Superior wear resistance - won't tear or rip

tick for web-light blue-60x60px

Shape prevents residual product build-up for  accurate weighing

tick for web-light blue-60x60px

3A, USDA, EC and ATEX compliant

Physical properties
Material/Fibre
Seeflex 040E - Ether-based thermoplastic polyurethane
Colour
Transparent
Construction/ Finish
Gloss/Gloss
Wall Thickness (+/- 10%)
0.9 mm / 1/32 inch base section. Thinner wall section in formed profile.
Breathable
No
Hardness (Shore A)
90
Dust tight?
Yes
Applicable Connector Materials
Seeflex 040E
Operating Conditions
Max. Operating Temp
86ºC / 176ºF
Operating Temp Range
- 25 to 80°C / - 13 to 176°F
Surge Temp
100°C / 212°F
Low Temp / Flexibility
Good
Surface Resistivity (0hms)*
1010 (Tested to ASTMD-257)
Air Permeability
No
Vibration
Yes
Oscillation
No
Compression
No
Certification and Compliance
FDA and USDA
FDA 21 CFR 177.1680 & 177.2600 and USDA
3A Certified
Manufactured from 3A 20-27 certified Seeflex Material and the BFM® cuff and spigot system is a 3A certified 63-04 sanitary fitting.
EU Approved
(EC) 1935/2004, 2023–2006 & 10/2011
Atex Certified
Approved for all dust explosion hazardous areas. Some restrictions apply.
Dimensions
Available Diameters
Ø100mm (4"), Ø150mm (6"), Ø200mm (8")
Applicable Connector Lengths
80mm (3")
Options
Available with SS Rings? (min. length for all is 150mm)
No
Available with Plastic Rings? (min. length for all is 150mm)
No
Available as Tool Release?
No
Available as Tapered?
No
Available as a one ended Connnector?
No
Quick Access Port Option?
No

Hear from a BFM® fitting expert

Title Line

Our Technical Lead, Matthew Bailey, speak in-depth about the features and benefits of our Weighing Bellows.







Precise Installation Is Important

Title Line

Accurate Installation of your spigots is very important for the Weighing Bellows product.

Watch the adjacent video and download the Installation Guide below.





Getting Started with BFM® fittings

Title Line

We have Authorized Distributors who will help work through what you want to achieve and how BFM® fitting can improve your plant.

Contact Us

Title Line
If you would like to discuss your unique application, please contact us and we'll help find a solution for you.
