Product Description

Title Line

A pure PTFE connector capable of running at both low and high temperatures, and can be used across the full pH scale.  Teflex NP Black also offers excellent surface resistivity - 106.

Application
  • Can be used on products across the full pH scale  i.e. caustic and acid products will not effect PTFE

  • Capable of running at very low (-73ºC/-99ºF) and very high temperatures (continuously operating at 300ºC / 572ºF with short-term surges at 316ºC / 600ºF)
Key Features
tick for web-light blue-60x60px


Capable of running at both low and high temperatures

tick for web-light blue-60x60px


Can be used on products across the full pH scale


tick for web-light blue-60x60px

Designed to dissipate electrical charge - 106

tick for web-light blue-60x60px

Food Grade - compliant with FDA & EU regulations

Physical properties
Material/Fibre
Pure PTFE
Colour
Black
Construction/ Finish
Multi-layer film
Wall Thickness (+/- 10%)
0.23mm / 1/64”
Weight
459 g/m2 / 13.5 oz/yd2
Breathable
No
Tear Strength (N/mm)
97 N / 25lbs
Dust tight?
Yes
Maximum Number of Rings (on a single connector)
9
Operating Conditions
Max. Operating Temp
300ºC / 572ºF
Operating Temp Range
- 73 to 300˚C / - 99 to 572˚F
Surge Temp
316˚C / 600˚F
Low Temp / Flexibility
Good
Surface Resistivity (0hms)*
106
Air Permeability
0
Max. Operating Pressure
.345 Bar / 5 PSI (for temp. to 90˚C / 195˚F measured on a static Ø200mm x 200mm long connector). We recommend using the shortest possible connector for applications where increased pressure and/or high temperature is expected.
Vibration
Yes (expect shorter lifespan)
Oscillation
No
Compression
No
Certification and Compliance
FDA and USDA
FDA 21 CFR 177.1550, 175.105 & 178.3297
EU Approved
(EC) 1935/2004 & 10/2011
Atex Certified

IBExU tested. Approved for all dust explosion hazardous areas. Some restrictions apply.

Dimensions
Available Diameters
  • Ø100mm,
  • Ø125mm
  • Ø150mm - 500mm (in 50mm increments).

(max. diameter with SS rings is 500mm, Tool Release is 500mm)

Applicable Connector Lengths
  • 80mm (3"),
  • 100mm (4") to 1,000mm (3ft 3") in 50mm (2") increments.

(min. length for all with rings is 150mm)

Options
Available with SS Rings? (min. length for all is 150mm)
Yes - to Ø500mm = CL ≤ 1,000mm
Available with Plastic Rings? (min. length for all is 150mm)
No
Available as Tool Release?
Yes to Ø650mm
Available as Tapered?
No
Available as a one ended Connnector?
Yes
Quick Access Port Connector?
No

Getting Started with BFM® fittings

Title Line

We have Authorized Distributors who will help work through what you want to achieve and how BFM® fitting can improve your plant.

Product Options

Title Line
  • Rings
  • Tool Release
Rings

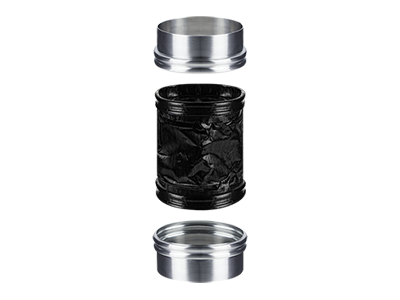

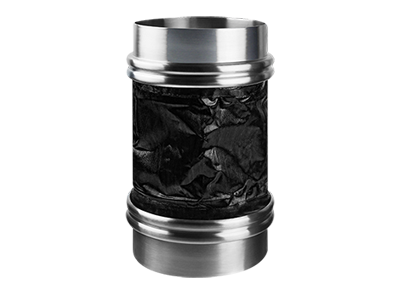

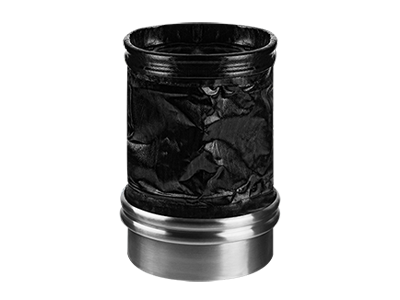

BFM® Teflex NP Black with ringsTeflex NP Black is available with stainless steel or plastic support rings to help keep the walls of the connector open.
