Product Description

Title Line

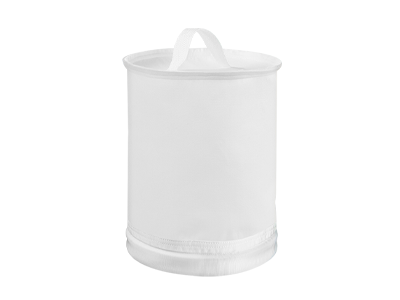

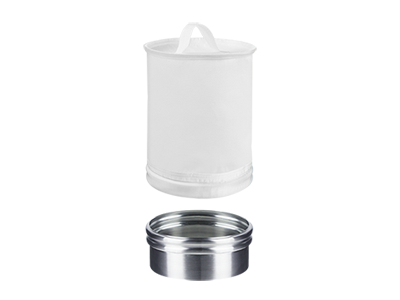

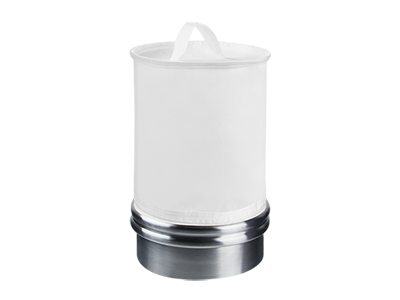

A 100% polyester needle felt breather bag designed for breathing applications such as venting hoppers and other contained vessels.

Application
  • Designed for breathing applications such as venting hoppers and other contained vessels

  • The BFM® breather may become required as the BFM® connectors create a 100% sealed system.
Key Features
tick for web-light blue-60x60px


Vents out your process to maintain product quality


tick for web-light blue-60x60px


Capable of running at high temperatures

Physical properties
Material/Fibre
Polyester
Colour
White
Construction/ Finish
Polyester multi-filament scrim supported needle felt, superglazed one side
Wall Thickness (+/- 10%)
1.7mm / 1/16 inch
Weight
550 g/m2 / 16.22 oz/yd2
Breathable
Yes
Bursting Strength (kg)
45.7+
Dust tight?
No
Operating Conditions
Max. Operating Temp
130°C / 266°F
Operating Temp Range
- 20 to 130°C / - 4 to 266°F
Surge Temp
150°C / 302°F
Low Temp / Flexibility
Yes?
Surface Resistivity (0hms)*
108

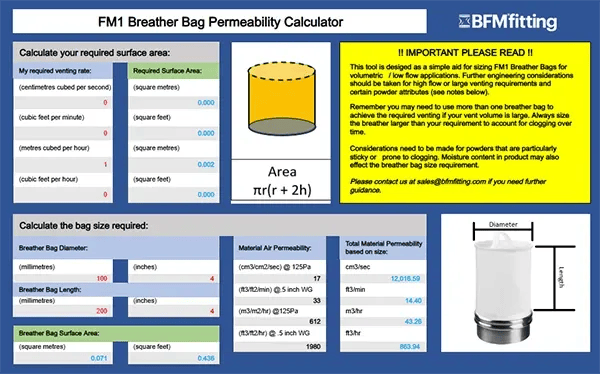

Air Permeability
17 (cm3/cm2/sec at 125Pa) / 33 (ft3/ft2/min at 0.5 inch wg)
Vibration
Yes
Oscillation
No
Compression
No
Certification and Compliance
FDA and USDA
FDA 21 CFR 177.2800
EU Approved
(EC) 1935/2004 & 10/2011
Atex Certified
No
Dimensions
Available Diameters
  • Ø100mm,
  • Ø125mm then
  • Ø150mm - 650mm (in 50mm increments).

(Max. for Tool Release is 650mm)

Applicable Connector Lengths
  • 100mm (4") to 1,000mm (3ft 3") in 50mm (2") increments
Options
Available with SS Rings? (min. length for all is 150mm)
No
Available with Plastic Rings? (min. length for all is 150mm)
No
Available as Tool Release?
Yes to Ø650mm
Available as Tapered?
No
Quick Access Port Connector?
No
Product Option

Tool Release (TR)

Title Line

For added security, this option has a significantly firmer snap-band that makes it virtually impossible to remove by hand and requires a specially shaped tool.

Tool Release in action
