Blanking bins/socks are ideal for sifter oversize collection.
Product Description
BFM® blanking bins are ideal for sifter oversize collection bins are another ideal application for the BFM® concept.
Application
- Transparent for monitoring fill level and reject consistency, they can also be lined with plastic bags for easy disposal of reject product.
Downloadables:
- Blanking Sock Product Spec Sheet
- MSDS Seeflex 040E & 020E (EU)
- MSDS Seeflex 040E & 020E (GHS)
- ATEX Declaration of Compliance
- ATEX IBExU Report
- EU Declaration of Compliance
- Chinese National Food Safety Standard
- Canadian Food Inspection Agency - Letter of No Objection
- Safety Declaration - Seeflex Material
- Third Party Declaration
- Seeflex Regulations Summary - EC, FDA, USDA, 3A
Conditions and Compliance:

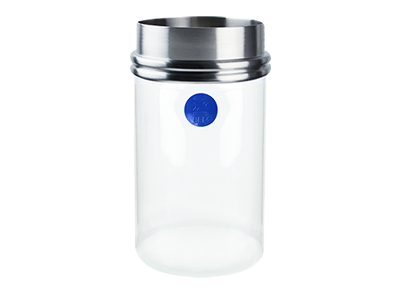

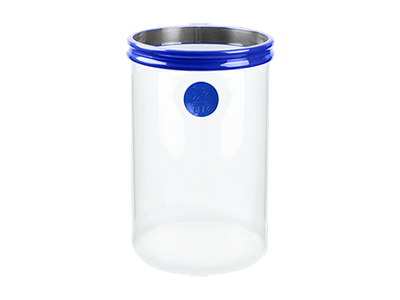

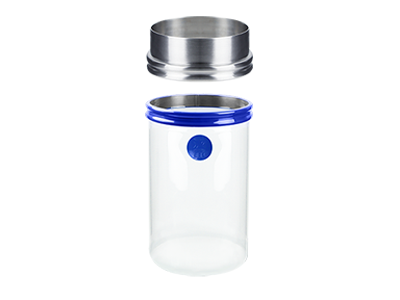

Blanking Sock / Bin
Images
Specifications
Physical properties
Material/Fibre
Seeflex -Ether-based thermoplastic polyurethane
Colour
Transparent
Construction/ Finish
Gloss/Gloss
Wall Thickness (+/- 10%)
0.9 mm / 1/32 inch
Breathable
No
Hardness (Shore A)
90
Tensile Strength (MPa)
40
Dust tight?
Yes
Maximum Number of Rings (on a single connector)
10
Operating Conditions
Max. Operating Temp
110ºC / 230ºF
Operating Temp Range
- 25 to 110 ̊C / - 13 to 230 ̊F
Surge Temp
120°C/ 248°F
Vibration
Yes
Oscillation
Yes
Compression
No
Certification and Compliance
FDA and USDA
FDA 21 CFR 177.1680 & 177.2600 and USDA
3A Certified
Manufactured from 3A 20-27 certified Seeflex Material and the BFM® cuff and spigot system is a 3A certified 63-04 sanitary fitting.
EU Approved
(EC) 1935/2004, 2023–2006 & 10/2011
Atex Certified
IBExU tested. Approved for all dust explosion hazardous areas. Some restrictions apply.
Dimensions
Available Diameters
- Ø100mm,
- Ø125mm then
- Ø150mm - 1,650mm (in 50mm increments).
(Max. for Tool Release is 650mm)
Applicable Connector Lengths
- 80mm (3"),
- 100mm (4") to 1,000mm (3ft 3") in 50mm (2") increments.
(min. length for all with rings is 150mm)
Options
Available with SS Rings?
(min. length for all is 150mm)
Yes - to Ø500mm = CL ≤ 1,000mm
Available with Plastic Rings?
(min. length for all is 150mm)
No
Available as Tool Release?
Yes to Ø650mm
Available as Tapered?
Yes
Quick Access Port Option?
No
